TIG Welding Supplies

TIG WELDING SUPPLIES FROM ARCgas

At ARCgas we specialize in supplying high-performance TIG welding machines, consumables, and filler metals designed for precision and versatility. With reliable performance and advanced technology, our machines ensure optimal results for every project. At ARCgas we have all the Lincoln Electric TIG Welding machines available, as well as many other popular name-brand manufacturers.

What is TIG Welding?

TIG welding, or Tungsten Inert Gas welding, is a precise arc welding process that uses a non-consumable tungsten electrode to produce high-quality welds. It employs an inert gas, typically argon or helium, to protect the weld area from contamination. Ideal for metals like aluminum and stainless steel, TIG welding offers excellent control and clean finishes.

Equipment Information

Square Wave®

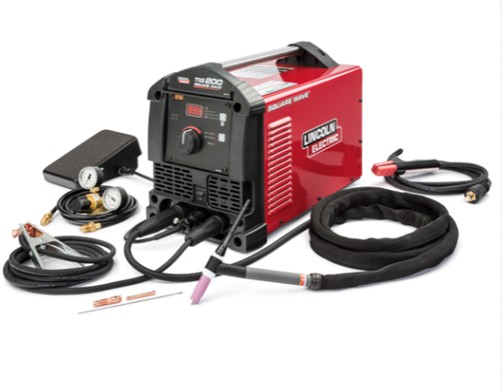

Square Wave® TIG 200 TIG Welder

Portable TIG and stick welding machine that lets hobbyists, makers, small fabricators and craftsmen explore their creativity. The Square Wave® TIG 200 is a portable TIG and stick welding machine that lets hobbyists, makers, small fabricators and craftsmen explore their creativity. It is designed to help expand your welding expertise. As your skills and confidence grow, you can take advantage of the Square Wave TIG 200’s additional functionality. No matter your skill level, you won’t be disappointed. The Square Wave TIG 200 provides smooth and stable AC TIG welding on aluminum and DC TIG welding on steel, stainless steel and chrome-moly. A user-friendly interface enables the operators to set it, forget it and weld.

FEATURES

ADVANCED FEATURES YET EASY TO USE

The user interface makes machine setup easy. Available features, such as Pulse, which provides a drumbeat-like rhythm for filler metal deposition, make you become a better TIG welder - faster. A Great TIG Machine for Aluminum - For a wider or tighter welding bead, users can easily adjust AC Frequency Control. AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials. TIG and Stick from One Power Source -The multi-process machine can TIG weld when precision and bead appearance are important. Users also have the advantage of stick welding capability for outdoor work or thicker materials. Take it Everywhere, Plug in Anywhere.™ - Plug in the Square Wave TIG 200 where you need it - a standard 120V circuit or 230V for maximum output. Portable and convenient to use, only 46 lb (21 kg).

SPECIFICATIONS

Product Weights & Dimensions

Dimensions

Specification	Details
Dimensions (H x W x D)	14 in x 10.75 in x 19.25 in (358 mm x 282 mm x 502 mm)
Net Weight	46.5 lbs (21.092 kg)

Machines

Specification	Details
Max Rating	200
Work Lead Connector Type	Dinse

Basic Specification

Specification	Details
Input Voltage	120/230
Input Current	120V TIG: 25% Duty Cycle 21A, 40% Duty Cycle 17A, 60% Duty Cycle 14A, Stick: 20% Duty Cycle 19A, 60% Duty Cycle 16A 230V TIG: 25% Duty Cycle 22A, 40% Duty Cycle 17A, 60% Duty Cycle 13A
Input Hertz	50/60
Input Phase	1
Input Power	120/230/1/50/60
Mode Icon	CC
Output Range	120V TIG: 10-125A, Stick: 10-90A, 230V TIG: 10-200A, Stick: 10-170A
Polarity	AC/DC
Rated Output	120V TIG: 125A/25%, 100A/40%, 85A/60%, 120V Stick: 75A/20%, 65A/60%, 230V TIG: 200A/25%, 160A/40%, 130A/60%, Stick: 170A/20%, 100A/60%, 120V AC TIG: 110A/25%

Application

Specification	Details
Typical Application	Automotive, Brewery, Distillery, General Fabrication, Maintenance & Repair

Warranty

Specification	Details
Warranty	3 years

Precision TIG®

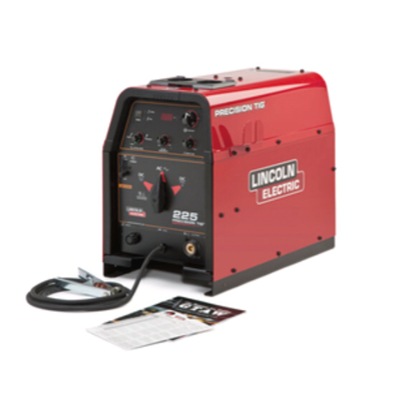

Precision TIG® 225 TIG Welder

Automotive, motorsports, aerospace, vocational education, and custom fabrication applications provide precision arc performance. Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with our patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools.

Simplicity

Easy-to-use operator interface - select mode, polarity and begin welding. When welding aluminum, AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration.

Adjust for any situation: cleaning, penetration and pulse

When welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers, bypass AC Auto Balance and adjust manually for full control. Enable the TIG pulser feature to minimize material distortion from excessive heat input. The TIG pulser can also help moderate filler metal deposition for consistent bead appearance.

Superior stick welder

Also offers outstanding stick welding capabilities, including the use of up to 5/32 in. (4.0 mm) electrodes - even with Fleetweld® 5P+ (E6010).

FEATURES

KEY FEATURES

Easy-to-use operator interface select mode, polarity and weld AC Auto-Balance® automatically adjusts for the optimal mix of cleaning and penetration when welding aluminum Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop. Enable the TIG pulser to minimize material distortion from excessive heat input Offers outstanding stick welding capabilities with up to 5/32 in. (4.0 mm) electrodes Experience enhanced starting, optimal arc stability, and accomplish more precise welds with our patented Micro-Start™ II Technology

SPECIFICATIONS

Product Weights & Dimensions

Specification	Details
Dimensions (H x W x D)	20.7 in x 14.5 in x 25.6 in (526 mm x 368 mm x 650 mm)
Net Weight	102 lbs (87.091 kg)

Machines

Specification	Details
Max Rating	230

Basic Specification

Specification	Details
Input Voltage	460/575
Input Current	40% Duty Cycle: 28/22, 60% Duty Cycle: 23/19
Input Hertz	60
Input Phase	1
Input Power	460/575/1/60
Mode Icon	CC
Output Range	5-230A Max OCV: 75V
Polarity	AC/DC
Rated Output	130A/40%, 110A/60%

Application

Specification	Details
Typical Application	Construction, Automotive, Brewery, General Fabrication, Maintenance & Repair, Marine Applications, Marine Fabrication & Repair, Pharmaceutical Equipment, Repair Welding, Shipbuilding

Warranty

Specification	Details
Warranty	3 years

Aspect®

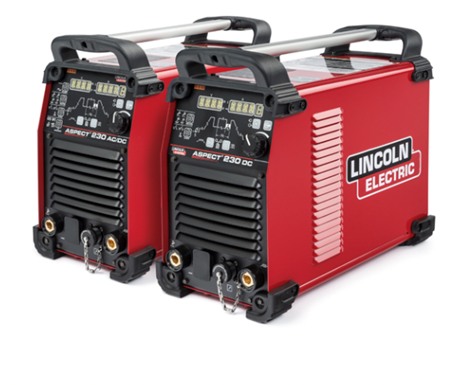

Aspect® 230 AC/DC

Mission critical welds, especially on applications that must stand up to the most rigorous testing requirements. The Aspect 230 TIG welder is an inverter based arc welding power source optimized for AC/DC TIG and Stick welding. A true professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc You need. All of the features You want can be easily customized to Your application and saved in the available memory settings. TIG weld like a champion with the new Aspect 230 AC/DC machine.

Weld on the Go

Portable, lightweight, and easy to transport

Peace of Mind

Save critical weld set up information in up to -9- memory locations
Activate Intellistart technology to automatically provide for softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials. Optional AC Auto Balance technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.

Features

Exceptional arc response and stability
Highly Customizable TIG Machine
PowerConnect(R) technology 120-460V input power

SPECIFICATIONS

Product Weights & Dimensions

Specification	Details
Dimensions (H x W x D)	16.5 in x 9.7 in x 19.9 in (419 mm x 246 mm x 506 mm)
Net Weight	50.5 lbs (22.907 kg)

Basic Specification

Specification	Details
Input Voltage	120-460
Input Current	120V: 21A, 208/230/460V: 11A/10A/5A
Input Hertz	50/60
Input Phase	1/3
Input Power	120/1/50/60-460/1/3/50/60
Mode Icon	CC
Output Range	120V: 2-150A TIG, 208/230/460V: 2-230A
Polarity	AC/DC
Rated Output	120V: 110A/100%/14.4V, 125A/60%/15V, 150A/35%/16V; 208/230/460: 160A/100%/16.4V, 190A/60%/17.6V, 230A/35%/19.2V

Application

Specification	Details
Typical Application	Automotive, Brewery, Distillery, Maintenance & Repair, Marine Applications, Marine Fabrication & Repair, Repair Welding, Shipbuilding

Warranty

Specification	Details
Warranty	3 years

Invertec®

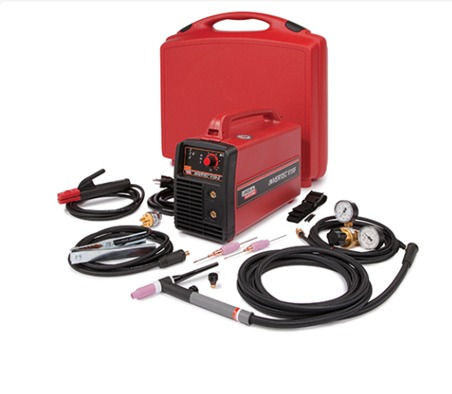

Invertec® V155-S TIG/Stick Welder Ready-Pak®

Small but rugged, high-performance DC TIG and Stick welders designed for alloy fabrication, process piping, or critical maintenance work The Invertec® V155-S offers much more than you would expect from a welder this size. Weighing in at just under 15 lbs. (6.8 kg) the Invertec® V155-S is no lightweight contender. It packs the full punch of a heavyweight professional that you can take to the most demanding job sites. It features 120/230V auto reconnect operation and can operate from a portable generator. It can also plug into a 200 ft. (61 m) 230V extension cord so you can weld just about anywhere.

Features

Two stick modes, SOFT and CRISP, provide the right arc characteristics for different types of electrodes. Includes assembled inverter / wire feeder cart Fan-As-Needed™ (F.A.N.™) reduces noise and dust inside the machine. Auto-Adaptive Arc Force minimizes electrode sticking in the puddle without compromising arc stability or increased spatter. Automatic Hot Start boosts the current during starting to make striking an arc easier. Touch Start TIG® mode - it’s like getting a TIG welder for free!

SPECIFICATIONS

Product Weights & Dimensions

Specification	Details
Dimensions (H x W x D)	11.3 in x 6.2 in x 15.4 in (288 mm x 158 mm x 392 mm)
Net Weight	30 lbs (13.608 kg)

Machines

Specification	Details
Max Rating	155

Basic Specification

Specification	Details
Input Voltage	115/230
Input Current	22.8A, 28.8A
Input Hertz	50/60
Input Phase	1
Input Power	115/230/1/50/60
Mode Icon	CC
Output Range	5-155A
Polarity	DC
Rated Output	130A/15.2V/30%, 155A/16.2V/30%

Application

Specification	Details
Typical Application	Distillery, Glass Industry, Maintenance & Repair, Pharmaceutical Equipment, Pipeline & Offshore, Piping, Power

Warranty

Specification	Details
Warranty	3 years

ARCgas Food and Beverage

ARCgas provides high-quality gases like CO2 and nitrogen, essential for carbonation, preservation, and packaging in the food and beverage industry. With tailored solutions and expert support, we enhance product quality, extend shelf life, and ensure compliance with industry standards.

Nitrogen

Used for packaging to extend shelf life, Employed in flash freezing processes, Utilized for carbonation in beverages

Carbon Dioxide

Essential for carbonation in soft drinks and beer, Used in modified atmosphere packaging, Applied in dry ice form for cooling and freezing

Oxygen

Used in aquaculture for fish farming, Employed in oxygenation of wine during fermentation

Argon

Used in wine production to prevent oxidation, Applied in packaging to preserve freshness

Helium

Used in leak detection for food packaging

Hydrogen

Utilized in hydrogenation processes for oils and fats

Specialty Gas Mixtures

Custom blends for specific food preservation needs.
Calibration gases for quality control equipment

Liquid Nitrogen

Used in cryogenic freezing of food products, Applied in creating unique textures in molecular gastronomy

Learn More

Food Grade Gas Suppliers for Modified Atmosphere Packaging (MAP)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

70⁺

Years of Experience

Dry Ice

Used for transportation of perishable goods,
Applied in special effects for food presentation

Ozone

Used for sanitization in food processing facilities

Clean-in-Place (CIP) Gases

For cleaning and sterilizing production equipment

Gas Handling Equipment

Regulators, valves, and flow meters for precise gas control
Storage tanks and cylinders for various gas types

Safety Equipment

Gas detectors and alarms for workplace safety
Personal protective equipment (PPE) for handling gases

Technical Support

Installation and maintenance services
Safety training for proper gas handling

Compliance Assistance

Help with meeting food safety regulations
Documentation for traceability and quality assurance
