MIG Welding Supplies

MIG WELDING SUPPLIES FROM ARCgas

At ARCgas, we specialize in supplying high-quality MIG welding machines, consumables, and filler metals designed for professional use. Our diverse range features advanced models known for their precision and durability, making them ideal for a variety of welding tasks. Each machine is equipped with user-friendly controls and multiple welding capabilities, ensuring optimal performance across different materials. Whether working with aluminum, stainless steel, or mild steel, our MIG welders deliver the reliability and efficiency needed to achieve outstanding results in any project. At ARCgas we have all the Lincoln Electric MIG Welding machines available, as well as many other popular name-brand manufacturers.

What is MIG Welding?

MIG welding, or Metal Inert Gas welding, is a popular arc welding process that uses a continuous wire electrode and an inert gas shield to protect the weld from contamination. It’s known for its speed and versatility, making it ideal for various metals and thicknesses in automotive, construction, and manufacturing applications.

Featured Welding Machines

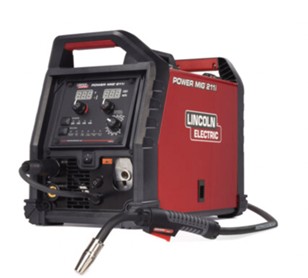

MIG® 211i

POWER MIG® 211i MIG Welder

The POWER MIG® 211i MIG welder is a straightforward and dependable machine that’s ideal for MIG and flux-cored welding. This reliable diehard is your best friend on the farm, in the small shop, or for maintenance and repair work. The seven-segment display with basic knob controls and a simple three-step setup process gets you welding quickly – and when it’s time to move, the sleek case with multiple lift points make it extremely portable. If you’re looking for an incredibly simple, reliable MIG welder that won’t break the bank, the POWER MIG 211i MIG welder is ready to go to work for you.

KEY FEATURES

FEATURES Detail

Simple user interface - Seven segment display with basic knob controls. Process Capabilities - MIG, Flux-Cored and Spool Gun. Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply. Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop. Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience. Lightweight and Portable - Only 41 lbs

SPECIFICATIONS

Machine Inputs & Outputs

Parameter	Value	Units
Input Voltage #1 (Voltage/Phase/Hertz)	120/1/60	V / Phase / Hz
Rated Output #1A (Current/Voltage/Duty Cycle)	MIG 95A/18.8V/60%	Current / Voltage / Duty Cycle
Rated Output #1A (Current/Voltage/Duty Cycle)	75A/17.8V/100%	Current / Voltage / Duty Cycle
Input Current at Max Rated Output #1 (Current)	20	A
Input Voltage #2 (Voltage/Phase/Hertz)	230/1/60	V / Phase / Hz
Rated Output #2A (Current/Voltage/Duty Cycle)	MIG 175A/22.8V/30%	Current / Voltage / Duty Cycle
Rated Output #2A (Current/Voltage/Duty Cycle)	90A/18.6V/100%	Current / Voltage / Duty Cycle
Input Current at Max Rated Output #2 (Current)	22.5	A

dimensions

Product Weights & dimensions

Parameter	Value	Units
dimensions (H x W x D)	15.5 in x 10.75 in x 22 in (394 mm x 273 mm x 558 mm)	in / mm
Net Weight	41 lbs (18.6 kg)	lbs / kg

Machines

Specification	Details
IEC Rating	IP21S
Max Rating	211A
Output Range by Mode	MIG: 20-211A
Number of Operators per Machine	1
Machine Communication Technology	Analog
Work Lead Connector Type	Dinse
Welding Gun Cable Assembly Length	Magnum PRO 100L
Work Cable Length	10 FT
Spool Gun Compatible (Duty)	Light

Wire & TIG

Wire and TIG Feeders

Specification	Details
UI Type	Meters
Wire Feeders Processes	MIG, Flux Cored
Contact Tips Included	Yes
Sample MIG Wire Included	Yes

Specifications

Basic Specification

Specification	Details
Input Voltage	120/230
Input Current	120V: 15A, 230V: 15A
Input Hertz	60
Input Power	120/230/1/60
Input Phase	1
Mode Icon	CV
Output Range	120V: 20-140A DC, 230V: 20-211A DC, Max. OCV: 76V
Polarity	DC
Rated Output	120V: 95A/18.8V/60%, 230V: 175A/22.8V/30%

Application

Application	Details
Typical Application	Construction, Automotive, General Fabrication, Maintenance & Repair, Repair Welding

Warranty

Application	Details
Warranty	3 Years

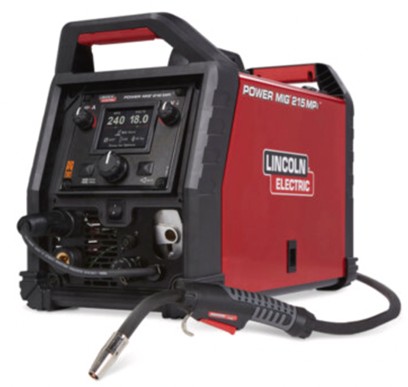

MIG® 215 MPi™

POWER MIG® 215 MPi™ Multi-Process Welder

The POWER MIG 215 MPi multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor or repair personnel. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process and selection of weld settings incredibly simple. Take on any job – MIG, TIG, Stick or Flux-Cored – with the versatile POWER MIG 215 MPi welder.

FEATURES

KEY FEATURES

Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG. Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply. Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop. Built in TIG Solenoid and Foot Pedal Adapter -The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required. Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience. Ready.Set.Weld® Technology - Simplifies setup by recommending optimal welding parameters for each welding procedure. ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome. Memory Capability - Easily recall saved settings to get welding faster. Lightweight and Portable - Only 48 lbs. Advance Options

Specification

Machine Inputs & Outputs

Specification	Details
Input Voltage #1 (Voltage/Phase/Hertz)	120/1/60
Rated Output #1A (Current/Voltage/Duty Cycle) - MIG	105A/19.25V/40%, 80A/18V/100%
Rated Output #1B (Current/Voltage/Duty Cycle) - TIG	130A/15.2V/40%, 100A/14V/100%
Rated Output #1C (Current/Voltage/Duty Cycle) - Stick	85A/23.4V/40%, 60A/22.4V/100%
Input Current at Max Rated Output #1 (Current)	22A
Input Voltage #2 (Voltage/Phase/Hertz)	230/1/60
Rated Output #2A (Current/Voltage/Duty Cycle) - MIG	215A/24.8V/30%, 120A/20V/100%
Rated Output #2B (Current/Voltage/Duty Cycle) - TIG	175A/17V/30%, 110A/14.4V/100%
Rated Output #2C (Current/Voltage/Duty Cycle) - Stick	175A/27V/30%, 110A/24.4V/100%
Input Current at Max Rated Output #2 (Current)	29A

Dimensions

Products Weights & Dimensions

Specification	Details
Dimensions (H x W x D)	15.08 in x 10.88 in x 23.14 in (383 mm x 276 mm x 588 mm)
Net Weight	48 lbs (21.8 kg)

Machines

Specification	Details
Machines Processes	Stick (SMAW), Flux-Cored (FCAW), TIG (GTAW), MIG (GMAW)
IEC Rating	IP21S
Max Rating	220A
Output Range by Mode	MIG: 20-220A
Number of Operators per Machine	1
Machines Communication Technology	Digital
Work Lead Connector Type	Dinse
Welding Gun Cable Assembly Length	Magnum PRO 175L
Work Cable Length	10 FT
Spool Gun Compatible (Duty)	Light

Wire & TIG

Wire and TIG Feeders

Specification	Details
UI Type	TFT - Graphic
Wire Feeders Processes	MIG, Flux Cored
Contact Tips Included	Yes
Maximum Wire Thickness	0.045 in (1.1 mm)
Minimum Wire Thickness	0.025 in (0.6 mm)
Sample MIG Wire Included	Yes

Specifications

Basic Specifications

Specification	Details
Input Voltage	120/230
Input Current	120V: 15A, 230V: 15.9A
Input Hertz	60
Input Power	120/230/1/60
Input Phase	1
Mode Icon	CC/CV
Output Range	120V: 20-140A DC, 230V: 20-220A DC, Max. OCV: 56V
Polarity	DC
Rated Output	120V: 105A/19.3V/40%, 230V: 215A/24.8V/30%

Application

Application	Details
Typical Application	Automotive, Brewery, Distillery, General Fabrication, Maintenance & Repair, Repair Welding

Warranty

Specification	Details
Warranty	3 Years

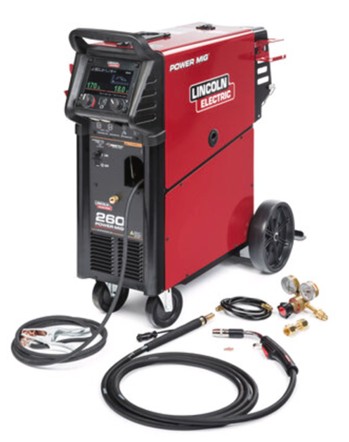

MIG® 260

POWER MIG® 260 MIG Welder

The POWER MIG® 260 welding machine sets the standard for MIG and Flux-Cored welding in light industrial shop fabrication, maintenance, and repair work. The seven inch color display with automatic controls make setup and operation intuitive and simple. The POWER MIG® 260 welder offers superior welding performance and a multitude of professional features.

Category	Details
Simplified	Visualize Your Weld with ArcFX™ Technology Ready.Set.Weld® Quick Set-Up Automatic Settings - Provide Optimal Weld Parameters Universal Input Voltage
Innovative	7 inch Color Display Memory Capability Auto Calibration Optimizes Push-Pull Aluminum Performance
Ergonomic	Easy to View and Adjust Settings Tilting Gas Bottle Tray Front Access to 115V Outlet and Gun Connections Small Footprint

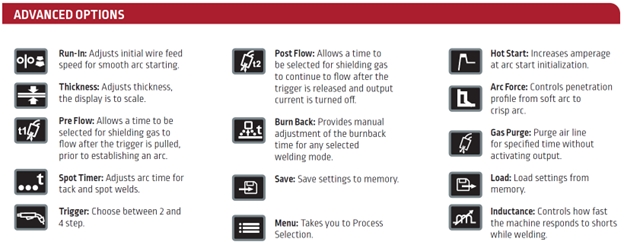

Advanced Features	Automatic settings provide optimal weld parameters Memory Capability - Ability to load and save weld settings Run-in - Adjustable speed at which wire strikes the plate to enhance starting Burnback - Adjustable time delay between turning off the arc and the wire feed to prevent wire sticking to the puddle Spot Timer - Adjustable arc time for repetitive tack and spot welds
Features	7 Inch Color Display Ready.Set.Weld® Quick Set Up ArcFX™Technology Universal Input Voltage Memory Capability

SPECIFICATIONS

Product Weights & Dimensions

Specification	Details
Dimensions (H x W x D)	37.3 in x 18 in x 40.4 in (947.42 mm x 457.2 mm x 1026.16 mm)
Net Weight	247 lbs (112.039 kg)

Machines

Specification	Details
Max Rating	300

Specifications

Basic Specifications

Specification	Details
Input Voltage	208/230/460/575
Input Current	59/55/27/21
Input Hertz	60
Input Phase	1
Input Power	208/230/460/575/1/60
Mode Icon	CV
Output Range	30-300A
Polarity	DC
Rated Output	250A/26.5V/40%

Application

Specification	Details
Typical Application	Automotive, General Fabrication, Maintenance & Repair, Repair Welding

Warranty

Specification	Details
Warranty	3 Years

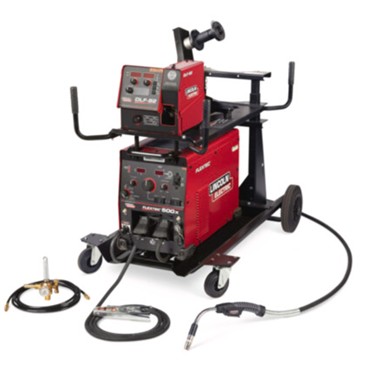

Flextec 500X

Flextec 500X / DLF-82 Ready-Pak

The Flextec 500X / DLF-82 Ready-Pak is the perfect 500A fabrication shop pulsed MIG system. Utilizing the tough and reliable Flextec 500X multi-process power source, the ready-pak combines the DLF-82 wire feeder for a 500A system that is simple and reliable with the added benefit of pulsed MIG capability, as well as true multi-process support.

Features

Lincoln Ready-Paks are fully assembled Just connect power and add wire and shielding gas. Includes assembled inverter / wire feeder cart Simple to Use For synergic setup, choose desired weld process, wire type, wire diameter and gas type. Simple to Use one knob control. Set higher wire feed speeds for thicker materials and lower wire feed speeds for thinner materials. Voltage is automatically adjusted. Pulsed MIG Support lower spatter, greater puddle control, more forgiving MIG process. • 380-575V 3 - phase input power required

SPECIFICATIONS

Machine Inputs & Outputs

Machines

Specification	Details
Machines Processes	MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)

Wire and TIG Feeders

Specification	Details
Number of Driven Rolls	2 rolls
Communication Technology	ArcLink

Basic Specification

Specification	Details
Input Voltage	380/460/575V, 3-Phase
Rated Output	500A @ 60%

Application

Specification	Details
Typical Application	General Fabrication

Warranty

Specification	Details
Warranty	3 Years

ARCgas Food and Beverage

ARCgas provides high-quality gases like CO2 and nitrogen, essential for carbonation, preservation, and packaging in the food and beverage industry. With tailored solutions and expert support, we enhance product quality, extend shelf life, and ensure compliance with industry standards.

Nitrogen

Used for packaging to extend shelf life, Employed in flash freezing processes, Utilized for carbonation in beverages

Carbon Dioxide

Essential for carbonation in soft drinks and beer, Used in modified atmosphere packaging, Applied in dry ice form for cooling and freezing

Oxygen

Used in aquaculture for fish farming, Employed in oxygenation of wine during fermentation

Argon

Used in wine production to prevent oxidation, Applied in packaging to preserve freshness

Helium

Used in leak detection for food packaging

Hydrogen

Utilized in hydrogenation processes for oils and fats

Specialty Gas Mixtures

Custom blends for specific food preservation needs.
Calibration gases for quality control equipment

Liquid Nitrogen

Used in cryogenic freezing of food products, Applied in creating unique textures in molecular gastronomy

Learn More

Food Grade Gas Suppliers for Modified Atmosphere Packaging (MAP)

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

70⁺

Years of Experience

Dry Ice

Used for transportation of perishable goods,
Applied in special effects for food presentation

Ozone

Used for sanitization in food processing facilities

Clean-in-Place (CIP) Gases

For cleaning and sterilizing production equipment

Gas Handling Equipment

Regulators, valves, and flow meters for precise gas control
Storage tanks and cylinders for various gas types

Safety Equipment

Gas detectors and alarms for workplace safety
Personal protective equipment (PPE) for handling gases

Technical Support

Installation and maintenance services
Safety training for proper gas handling

Compliance Assistance

Help with meeting food safety regulations
Documentation for traceability and quality assurance
