Engine Drive Welders

ABOUT

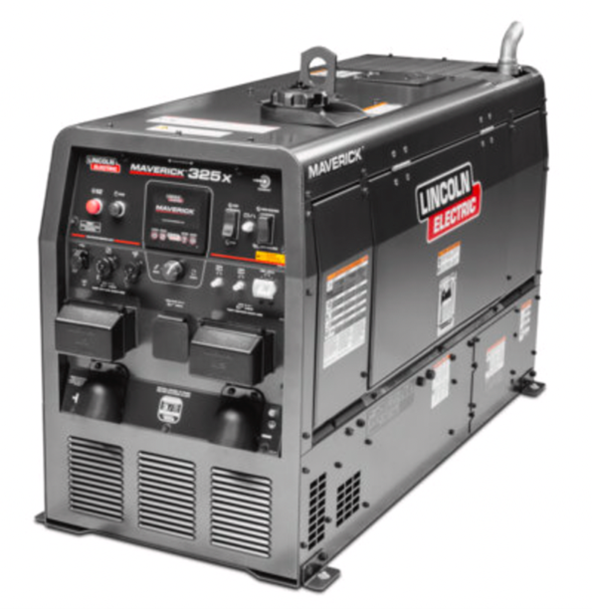

Maverick® 325X Ready-Pak® 1

The Maverick® 325X is an advanced engine-driven welder with the perfect combination of size, performance, and innovation. This best-in-class arc welding machine provides substantial power and promotes fuel savings with variable engine RPM and auto start/stop capabilities. In addition, the machine boasts an advanced user interface on a heavy-duty 4.6” weatherproof LCD screen. The machine also features CrossLinc® technology, which allows the adjustment of machine output at the arc to promote productivity, site safety, and overall weld quality.

FEATURES

Key Features

Compact Power – Plenty of jobsite power with 325A of welding output and 10 kW of clean, single-phase power.
Optimized Performance – A multi-process workhorse with specialized stick, wire welding, and direct-connect spool gun capabilities for all your jobsite needs.
Greater Machine Control – Durable, 4.6 inch digital display for full machine control - including process setup, maintenance reminders, and PIN authorization.
CrossLinc® Enabled – Change welding parameters at the arc without an additional control cable - helping to increase productivity, promote safety, and improve weld quality.
Variable Engine RPM – Automatically adjusts engine speed to reduce fuel consumption and engine noise.
Auto-Stop/Start Technology – Save on fuel, avoid excess idling and reduce engine wear.

SPECIFICATIONS

Product Weights & Dimensions
Net Weight	1241 lbs (563 kg)

Machines
Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	325A / 33V / 100% @ 104°F (40°C)
Max Rating	400A / 29V / 60% @ 104°F (40°C)
Output Range by Mode	Stick (SMAW): 35 – 400 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 13 – 40 Volts DC TIG (GTAW): 25 – 250 Amps Arc Gouging (CAC-A): 60 – 400 Amps
Open Circuit Voltage	80 Peak OCV at 3600 RPM
Rated Gouging Carbon Diameter	5/16" (8.0 mm)
Machines Communication Technology	CrossLinc

Engine Driven Welders
Single Phase Auxiliary Output	10,000 Watts Continuous, 120/240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R, NEMA 14-50R
Engine Brand & Model	Kubota® D902
Engine Description	3 Cylinder Naturally Aspirated Water Cooled Diesel Engine
Engine Horsepower	24.8 hp (18.5 kW)
Engine Block Size & Displacement	54.8 cu. in (.90 L)
Bore x Stroke	2.83 in x 2.90 in (72 mm x 73.6 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	3600
Low Idle Operating Speed	2500
Sound Rating @ 23 ft. (7m)	Idle: 73.5 dB, Max Load: 79.6 dB
Fuel Tank Size	11.5 US gal. / 50 L
Oil Capacity	3.9 qts. / 3.7 L
Coolant Capacity	0.9 US gal. / 3.3 L

Application

Typical Application

Product Weights & Dimensions
Net Weight	1241 lbs (563 kg)

Machines
Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	325A / 33V / 100% @ 104°F (40°C)
Max Rating	400A / 29V / 60% @ 104°F (40°C)
Output Range by Mode	Stick (SMAW): 35 – 400 Amps CV-Wire (GMAW, FCAW-S, FCAW-G): 13 – 40 Volts DC TIG (GTAW): 25 – 250 Amps Arc Gouging (CAC-A): 60 – 400 Amps
Open Circuit Voltage	80 Peak OCV at 3600 RPM
Rated Gouging Carbon Diameter	5/16" (8.0 mm)
Machines Communication Technology	CrossLinc

Engine Driven Welders
Single Phase Auxiliary Output	10,000 Watts Continuous, 120/240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R, NEMA 14-50R
Engine Brand & Model	Kubota® D902
Engine Description	3 Cylinder Naturally Aspirated Water Cooled Diesel Engine
Engine Horsepower	24.8 hp (18.5 kW)
Engine Block Size & Displacement	54.8 cu. in (.90 L)
Bore x Stroke	2.83 in x 2.90 in (72 mm x 73.6 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	3600
Low Idle Operating Speed	2500
Sound Rating @ 23 ft. (7m)	Idle: 73.5 dB, Max Load: 79.6 dB
Fuel Tank Size	11.5 US gal. / 50 L
Oil Capacity	3.9 qts. / 3.7 L
Coolant Capacity	0.9 US gal. / 3.3 L

Application
Typical Application	Construction, Cross Country Pipeline, Construction & Field Erection, Maintenance & Repair, Oil & Gas, Power Generation, Structural Fabrication, Structural Welding

Warranty
Warranty	3 Years Parts and Labor – Engine warranted separately by the engine manufacturer

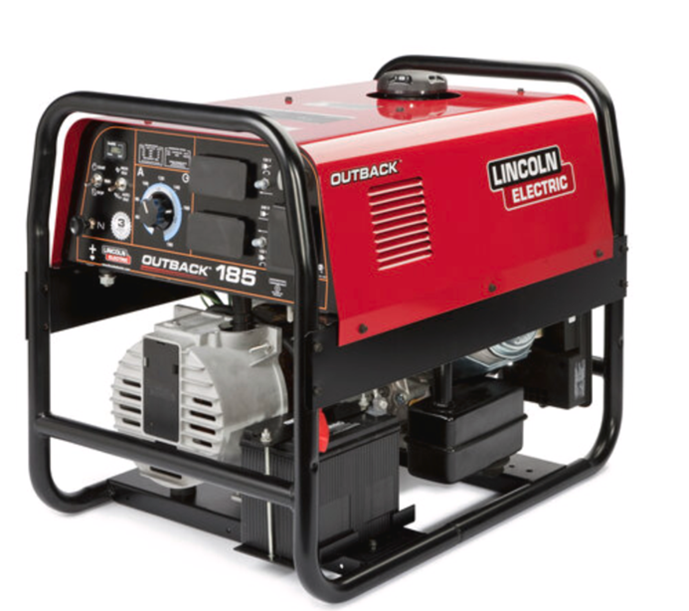

Outback® 185 Engine Driven Welder (Kohler®)

PIPEFAB™ READY-PAK® Welding System

Great for anyone who needs portable DC stick welding and AC generator power! The Low-Lift™ grab bars on both ends make lifting the Outback® 185 on and off truck beds easy. The compact Outback® 185 is easy to start with all engine controls on the front of the machine, and it’s easy to use for welding. Use the AC generator power for a variety of applications described below with the large 6.8 gallon (25.7 liter) fuel tank! Plug in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding too.

Low-Lift™ Grab Bars

More leverage for lifting unit on and off truck beds.
Extra protection against product damage.
Best in class feature!

All Engine Controls on Front Control Panel

Easy access for starting, especially when mounted on truck beds.
Front panel includes electric start switch and engine choke control.
Best in class feature!

1-1/4 in. (32 mm) Diameter Rugged Tube Frame

Great for all-around sturdy protection.
Best in class feature!

6.8 Gallon (25.7 Liter) Fuel Tank

Less frequent re-fueling, for extended run times.
Large fuel fill opening for easy re-fueling too!
Best in class feature!

Weld with up to 5/32 in. (4 mm) Stick Electrode

Up to 185 amps of DC output for many applications.

5,700 Watts Peak AC Generator Power (5,200 Watts Continuous).

Many uses! Grinder, work lights, pump, motor starting, or emergency power.
Plug in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding.
Plug in a Lincoln Electric Tomahawk® 375 Air to cut metal.

FEATURES

KEY FEATURES

The Outback® 185 engine driven welder has portable DC stick welding with AC generator power.
Low-Lift™ Grab Bars (Patent Pending)
All Engine Controls on Front Control Panel
1-1/4 in. (32 mm) Diameter Rugged Tube Frame
6.8 Gallon (25.7 Liter) Fuel Tank

SPECIFICATIONS

Product Weight & Dimensions
Dimensions (H x W x D)	25.6 in x 21.8 in x 31.5 in (651 mm x 553 mm x 800 mm)
Net Weight	295 lbs (134 kg)

Machines
Machines Processes	Stick (SMAW)
Max Rating	150A / 25V / 20% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 50 – 185 Amps

Engine Driven Welders
Single Phase Auxiliary Output	5,200 Watts Continuous, 120/240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R, NEMA 6-50R
Engine Brand & Model	Kohler CH440
Engine Description	1 Cylinder Air Cooled Gasoline Engine
Engine Horsepower	14 HP
High Idle Operating Speed @ Rated Output	3600
Fuel Tank Size	6.8 US gal. / 25.7 L
Oil Capacity	1.2 qts. / 1.1 L

Application
Typical Application	General Fabrication, Maintenance & Repair, Repair Welding

Warranty
Warranty	3 Years Parts and Labor – Engine warranted separately by engine manufacturer

About

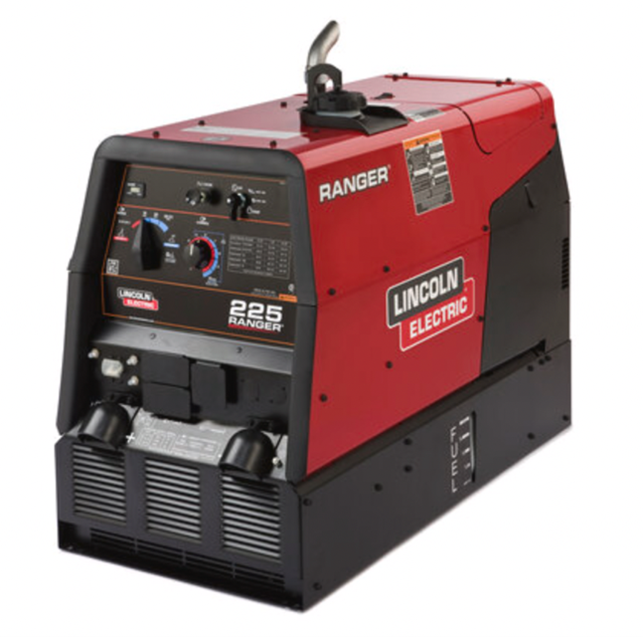

Ranger® 225 Engine Driven Welder (Kohler®)

The Ranger® 225 is a multi-process, engine-driven welder designed for a variety of processes - stick, TIG, MIG or flux cored. Whatever the process or application, arm yourself to get the job done and get it done right the first time.

Totally enclosed case protects the engine and limits noise
Smooth DC welding output
10,500 Watts AC generator power

Totally Enclosed Case

Engine is fully protected.
3 service access doors.
Low noise - 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.

Versatile DC Welding

Smooth DC welding output for a broad range of stick electrode types.
MIG, flux-cored and TIG capable (with optional equipment).

10,500 Watts Peak Single-Phase AC Generator Power

9,000 watts continuous power for generator output, plasma cutter or inverter welder.
Power-up lights, grinder, and power tools.

23 HP Kohler® Gasoline Engine

2 cylinder, 4 cycle overhead valve air-cooled design.
Oil drain extension for easy oil changes.
12 gallon tank for extended run times.
Only 1.5 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.

Rugged Reliability

Welding and AC generator outputs rated at 104ºF (40ºC).

FEATURES

KEY FEATURES

Totally Enclosed Case
Versatile DC Welding
10,500 Watts Peak Single-Phase AC Generator Power
23 HP Kohler® Gasoline Engine
Rugged Reliability

SPECIFICATIONS

Product Weight & Dimensions
Dimensions (H x W x D)	30 in x 21.5 in x 42.3 in (762 mm x 546 mm x 1073 mm)
Net Weight	514 lbs (233 kg)

Machines
Machines Processes	Stick (SMAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
Max Rating	225 A / 25V / 100% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 50 – 225 A Scratch Start TIG: 50 – 225 A CV-Wire: 15 – 25 V

Engine Driven Welders
Single Phase Auxiliary Output	9,000 Watts Continuous, 120/240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R, NEMA 14-50R
Engine Brand & Model	Kohler OHV Command CH730
Engine Description	2 Cylinder Air-Cooled Gasoline Engine
Engine Horsepower	23 HP
High Idle Operating Speed @ Rated Output	3600
Fuel Tank Size	12 US gal. / 45.4 L
Oil Capacity	2.0 qts. / 1.9 L

Application
Typical Application	Construction, General Fabrication, Maintenance & Repair

Warranty
Warranty	3 Years Parts and Labor – Engine warranted separately by engine manufacturer

About

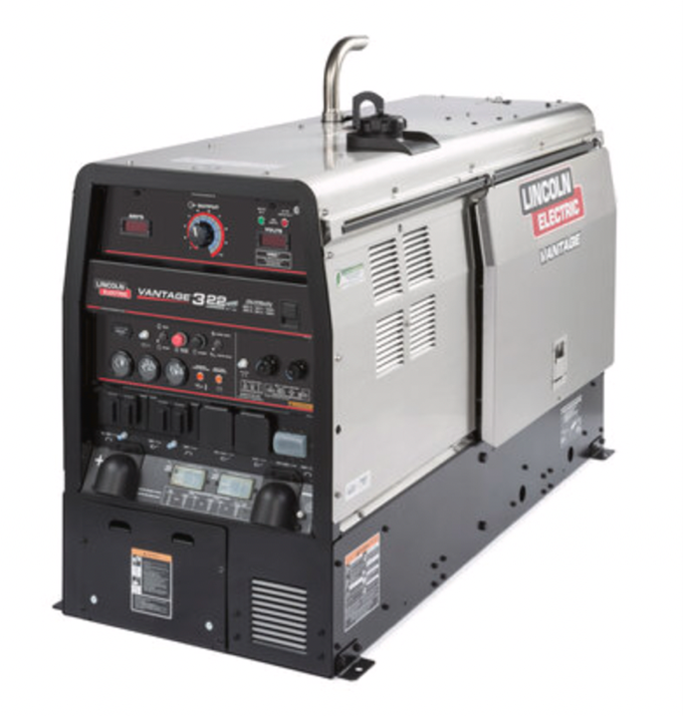

PVantage® 322 (Kubota®) Ready-Pak® 1

The Vantage® 322 is a versatile welder/generator offering up to 400 amps of welding output and 11 kW of auxiliary power. Featuring a compact design and multi-process welding capabilities, the machine allows operators to handle a wide range of tasks from stick or wire welding to powering jobsite tools. Designed with dependability in mind, the Vantage 322 has field-proven toughness to maintain uptime. The Vantage 322 provides excellent value, which makes the ideal choice for construction teams, pipe rig owners, and rental fleet managers. Purchase one of these machines today!

Features

Key Features

Compact Versatility – Offers up to 400 amps (IEC rated at 300 amps) of welding current to tackle numerous welding and carbon arc gouging applications. Select one of five basic process modes including CC-Stick, Downhill Pipe, DC Touch Start TIG®, CV-Wire, or Arc Gouging mode, which maximizes output for up to 5/16 in. (8.0 mm) carbon rods.
Generator Output – Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders.
Patented Chopper® Technology – Experience premium arc performance with minimized spatter for stick or pipe welding as well as enhanced gouging performance that prevents the engine from stalling, resulting in smooth material removal.
Reliable Operations – Engineered tough and field proven for ruggedness and durability to meet the most challenging job site needs and harshest environments.
Industrial Diesel Engine – Powered by a 22 hp, naturally aspirated Kubota® diesel engine. Runs smooth and quiet while meeting EPA Tier 4 Final compliance.
Innovative Service Access – Lockable and removable sliding access door to service the engine and internal components, battery drawer on front of machine for quick access, and top-mounted radiator cover provide convenient access to the machine.
Run Longer Between Fill Ups – Features a large 20 US gal. (75.7 L) fuel tank compared to smaller 11 US gal. (41.6 L) tanks in competitive machines.
Rent-Ready Package – Product comes in one preassembled package from the factory. Ready-Pak® 1 option includes the welder, trailer, fender and light kit, cable rack, welding cables, ground clamps, and electrode holder.

SPECIFICATIONS

Product Weight & Dimensions
Dimensions (H x W x D)	53.9 in x 57 in x 111 in (1370 mm x 1448 mm x 2820 mm)
Net Weight	1517 lbs (688 kg)

Machines
Machines Processes	Stick (SMAW) Gouging (CAC-A) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)
IEC Rating	300A / 32V / 100% @ 104°F (40°C)
Max Rating	400A / 23V / 100% @ 104°F (40°C)
Output Range by Mode	CC-Stick: 30 – 400 Amps Downhill Pipe (CC): 40 – 300 Amps Touch Start TIG: 20 – 250 Amps CV-Wire: 14 – 32 Volts Arc Gouging: 90 – 300 Amps
Open Circuit Voltage	73 Peak OCV at 1800 RPM
Rated Gouging Carbon Diameter	5/16" (8.0 mm)

Engine Driven Welders
Single Phase Auxiliary Output	10,000 Watts Continuous, 120/240V
Three Phase Auxiliary Output	11,000 Watts Continuous, 240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R, NEMA 14-50R, NEMA 15-50R
Engine Brand & Model	Kubota® V1505
Engine Description	4 Cylinder Naturally Aspirated Water Cooled Diesel Engine
Engine Horsepower	22.0 hp (16.4 kW)
Engine Block Size & Displacement	91 cu. in. (1.5 L)
Bore x Stroke	3.1 in x 3.1 in (78 mm x 78 mm)
Emissions Rating	US EPA Tier 4 Final
High Idle Operating Speed @ Rated Output	1800
Low Idle Operating Speed	1350
Fuel Tank Size	20 US gal. / 75.7 L
Oil Capacity	6.4 qts. / 6.0 L
Coolant Capacity	1.8 US gal. / 6.8 L

Application
Typical Application	Construction, Mining, Railroad Maintenance, Construction & Field Erection, Maintenance & Repair, Offshore, Oil & Gas, Power Generation, Shipbuilding, Structural Fabrication, Structural Welding

Warranty
Warranty	3 Years Parts and Labor – Engine warranted separately by the engine manufacturer
