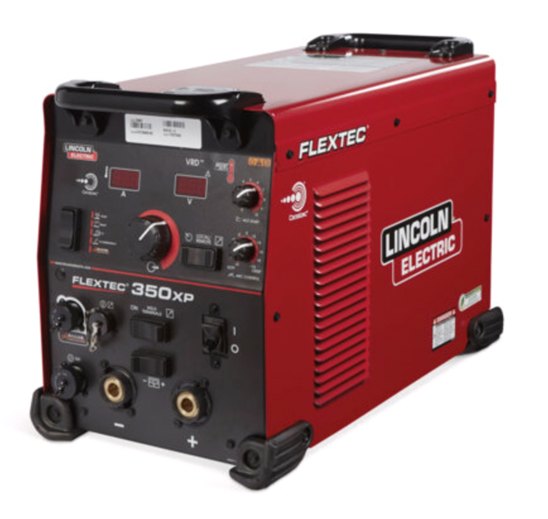

Flextec 350XP

ABOUT

Flextec 350XP

Whether in a shop or in the field, the Flextec 350X welder is built to perform. Equipped with CrossLinc® technology, the Flextec 350X welder can be controlled from hundreds of feet away without expensive and inconvenient control cables. Desert Duty® and IP23 rated, it can withstand harsh outdoor conditions and outperform other welders in its class. In the field, the Flextec 350XP is a rugged multi-process power source, this model stays reliable and offers much more than other inverter-based welders in its class. In the shop, the Flextec 350XP model is built to work with all 42V feeders for your factory applications. It is also compatible with Arclink® digital feeders to provide basic pulsed MIG and synergic modes and memories for quick setup and seamless connectivity.

FEATURES

ADVANCED FEATURES YET EASY TO USE

  • CrossLinc compatible
  • Built-in basic pulsed MIG capability.
  • Simple – streamlined operator panel minimizes setup time.
  • Reliable – components designed to stay cool in high temperature environments, IP23 and Desert Duty.

SPECIFICATIONS

Typical Applications

  • Fabrication and Manufacturing
  • Basic pulsed MIG applications
  • Field Construction

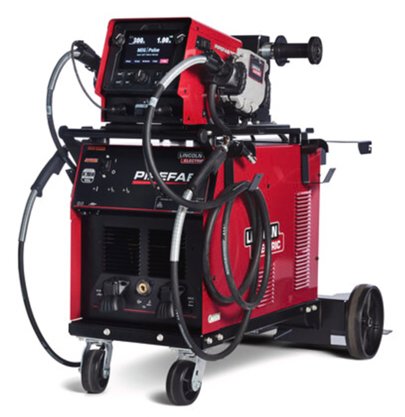

PIPEFAB™ READY-PAK®

PIPEFAB™ READY-PAK®

PIPEFAB™ READY-PAK® Welding System

From concept to reality, the PIPEFAB™ welding system was developed for one purpose – to deliver the ideal setup for pipe and vessel fabrication. From machine design to arc performance, no detail was overlooked in delivering a complete, customer-driven system that lets your shop focus on what matters most – making high-quality root-to-cap welds, faster and easier.

FEATURES

KEY FEATURES

  • Powered by proprietary Cable View™ Technology - The PIPEFAB™ system continually monitors cable inductance and adjusts the waveform to maintain consistent arc performance with long or coiled cable runs.
  • Breakthrough Arc Performance - Provides high quality results from root, to cap, to final fit.
  • Digital Navigation - For unmatched simplicity in setting parameters
  • Industry Focused Design - Engineered to give the Pipe and Vessel industries the ideal configuration and capabilities for their welding needs.
  • Backed by Unrivaled Customer Support - Supported by the 125+ years of renowned technical expertise.

SPECIFICATIONS

Product Weights & Dimensions
Net Weight 340 lbs
Basic Specifications
Input Voltage 200 / 208 / 220 / 230 / 380 / 400 / 415 / 460 / 575
Input Hertz 50 / 60
Input Phase 3
Application
Typical Application Piping, Pressure Vessels, Process Piping
Warranty
Warranty 5 Years
POWER MIG® 215 MPi™

About

POWER MIG® 215 MPi™ Multi-Process Welder

The POWER MIG 215 MPi multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor or repair personnel. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process and selection of weld settings incredibly simple. Take on any job – MIG, TIG, Stick or Flux-Cored – with the versatile POWER MIG 215 MPi welder.

FEATURES

KEY FEATURES

  • Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG.
  • Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
  • Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
  • Built in TIG Solenoid and Foot Pedal Adapter - The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required.
  • Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience.
  • Ready.Set.Weld® Technology - Simplifies setup by recommending optimal welding parameters for each welding procedure.
  • ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome.
  • Memory Capability - Easily recall saved settings to get welding faster.
  • Lightweight and Portable - Only 48 lbs.

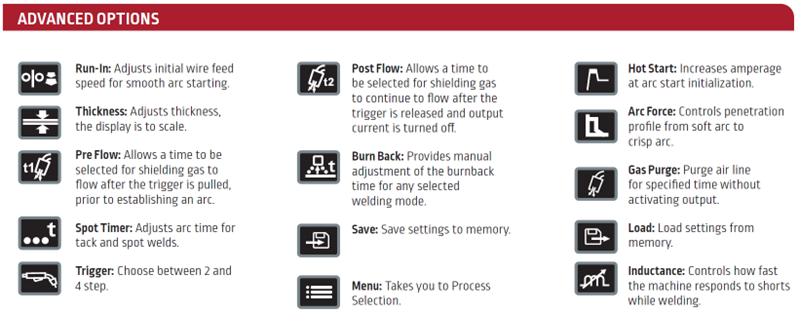

Advance Options Mig™ 215

SPECIFICATIONS

Machine Inputs & Outputs
Phase 1: Input Voltage #1120/1/60
Phase 1: Rated Output #1AMIG: 105A/19.25V/40%
80A/18V/100%
Phase 1: Rated Output #1BTIG: 130A/15.2V/40%
100A/14V/100%
Phase 1: Rated Output #1CStick: 85A/23.4V/40%
60A/22.4V/100%
Phase 1: Input Current at Max Rated Output #122A
Phase 1: Input Voltage #2230/1/60
Phase 1: Rated Output #2AMIG: 215A/24.8V/30%
120A/20V/100%
Phase 1: Rated Output #2BTIG: 175A/17V/30%
110A/14.4V/100%
Phase 1: Rated Output #2CStick: 175A/27V/30%
110A/24.4V/100%
Phase 1: Input Current at Max Rated Output #229A

Product Weights & Dimensions
Dimensions (H x W x D)15.08 in x 10.88 in x 23.14 in
(383 mm x 276 mm x 588 mm)
Net Weight48 lbs (21.8 kg)

Machines
Machines ProcessesStick (SMAW)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
IEC RatingIP21S
Max Rating220A
Output Range by ModeMIG: 20-220A
Number of Operators per Machine1
Machines Communication TechnologyDigital
Work Lead Connector TypeDinse
Welding Gun Cable Assembly LengthMagnum PRO 175L
Work Cable Length10 FT
Spool Gun Compatible (Duty)Light

Wire and TIG Feeders
UI TypeTFT - Graphic
Wire Feeders ProcessesMIG
Flux Cored
Contact Tips IncludedYes
Maximum Wire Thickness0.045 in (1.1 mm)
Minimum Wire Thickness0.025 in (0.6 mm)
Sample MIG Wire IncludedYes

Basic Specifications
Input Voltage120/230
Input Current120V: 15A, 230V: 15.9A
Input Hertz60
Input Power120/230/1/60
Input Phase1
Mode IconCC/CV
Output Range120V: 20–140A DC
230V: 20–220A DC
Max. OCV: 56V
PolarityDC
Rated Output120V: 105A/19.3V/40%
230V: 215A/24.8V/30%

Application
Typical Application Automotive, Brewery, Distillery,
General Fabrication, Maintenance & Repair,
Repair Welding

Warranty
Warranty3 Years

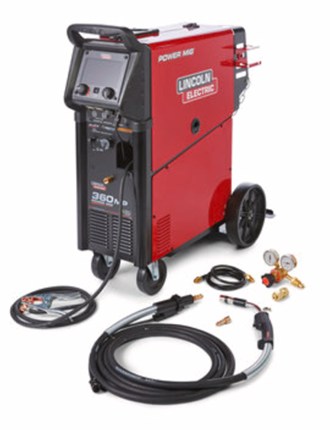

POWER MIG® 360MP Multi-Process Welder

Multi-Process Welder

POWER MIG® 360MP Multi-Process Welder

More than just a MIG machine, the POWER MIG® 360MP is a professional grade multi-process welding solution for you. This machine is capable of Stick, TIG, MIG and Flux-Cored welding, and is packed with advanced features such as MIG and TIG Pulse Welding, Ready Set Weld quick set up, ArcFX technology and Memory Capability. All of these features are communicated through an easy to use, highly visible, 7 Inch color display.

Features

Key Features

  • 7-Inch Color Display - Enhances communication with the operator
  • Multi-Process Capable - Welds MIG, flux-cored, stick, TIG, pulsed MIG, and advanced processes like Pulse-On-Pulse® and Power Mode®.
  • Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
  • Pulse-on-Pulse® - Delivers a stacked dime appearance when welding aluminum.
  • Power Mode® - Maintains a stable, smooth arc for short arc welding on steel.
  • Synergic Control - Set weld procedures with one control.

SPECIFICATIONS

Product Weights & Dimensions
Dimensions (H x W x D) 37.3 in x 18 in x 40.4 in (947.42 mm x 457.2 mm x 1026.16 mm)
Net Weight 265 lbs (120.204 kg)

Machines
Max Rating 350

Basic Specification
Input Voltage208/230/460/575
Input Current55/50/25/20A
Input Hertz50/60
Input Phase1
Input Power208/230/460/575/1/50/60
Mode IconCC/CV
Output Range5–360A
PolarityDC
Rated Output320A/30V/60%

Application
Typical Application Automotive, Brewery, Distillery,
General Fabrication, Maintenance & Repair,
Railcar Fabrication, Railing Industry,
Repair Welding

Warranty
Warranty 3 Year
